DARIMO ELLIPSE LIGHTWEIGHT CARBON HANDLEBAR

Description

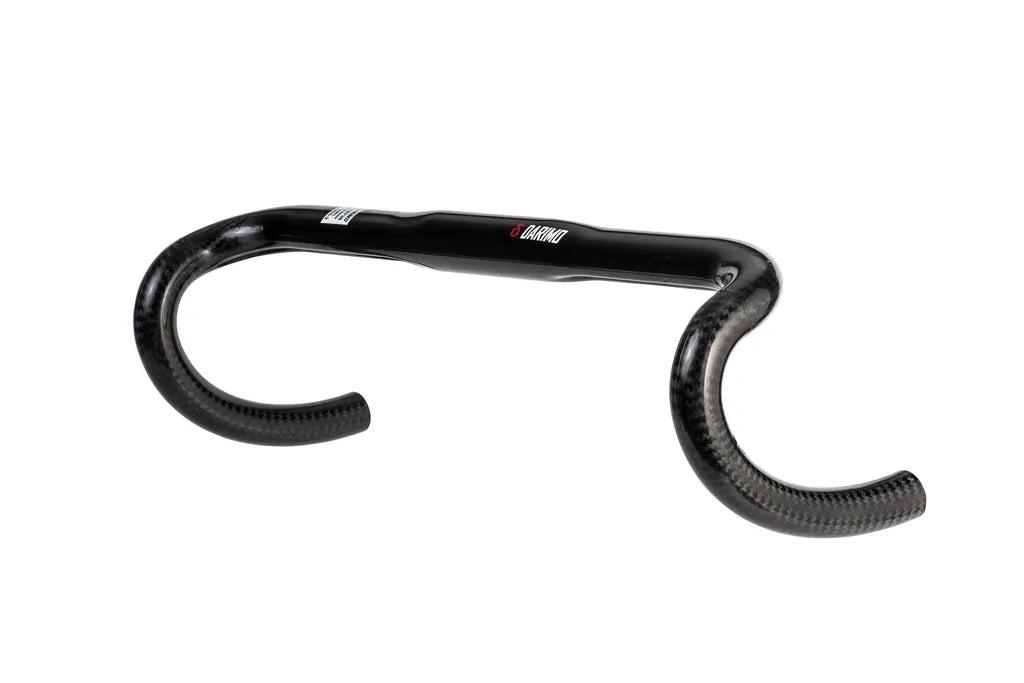

The ultimate in lightweight handlebars for your road bike, the Darimo Ellipse road handlebar sets a new standard with a weight of just 128 grams in 420mm width.

The handlebar is entirely manufactured with carbon fiber, with an exclusive combination of bidirectional and unidirectional fabrics with the right orientation to achieve the best weight-resistance-stiffness ratio, always keeping in mind your safety. The proper arrangement of fiber layers has been achieved after finite element calculations and destructive tests.

This type of laminate can only be achieved with a completely handmade construction with a location of the carbon layers made by hand on each handlebar, with a number and arrangement of different layers at each point.

The upper part has a flattened shape to increase comfort during hours of riding. In the lower part it has external grooves for brake and shifters cables.

SPECIFICATION

• Overall system weight limit(bicycle, cyclist, luggage): 110kg
• Rider weight limit: 90kg (>90kg requires customer order with reinforced stiffness)
• Di2 ready
• Reach: 77mm
• Drop: 128mm
• Diameter: 31.8mm
• Handlebar width measurement: Center-to-center
• Finish: UD Matt Black Decal

WEIGHT (+-3%):

• 420mm-128g
• 400mm-124g
• 380mm-121g
